The latest update of Graficto introduced the a feature of creating your own custom color palette. Before you create a custom color palette, It is best that you get familiar with the basic concepts of a color and templates in Graficto. Color palettes have three main components: fill colors, text colors and a heading color.

  • Fill Colors are the primary color given for items in a template. Usually, templates use the fill color for the background of the shapes representing the items.
  • Text Colors are the colors that are used for the text and icons that appear on the background of fill colors. So text colors should contrast well with the fill colors. Otherwise, the text might not be readable.
  • Heading Color is given to any headings or static shapes that are present in a template.

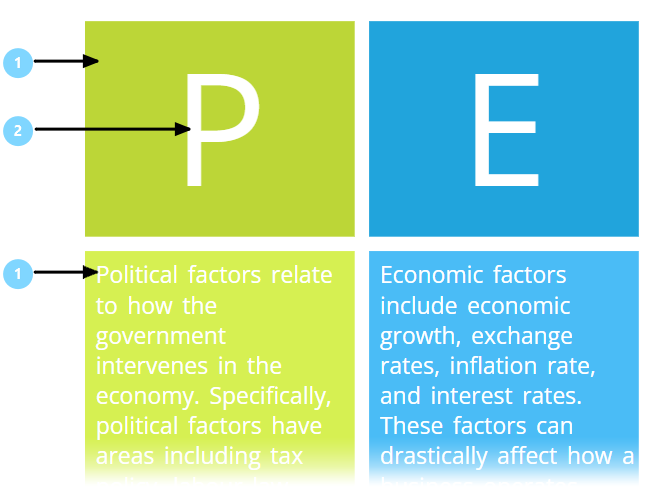

1 Fill color (#BCD637)

2 Fill color (#FFFFFF)

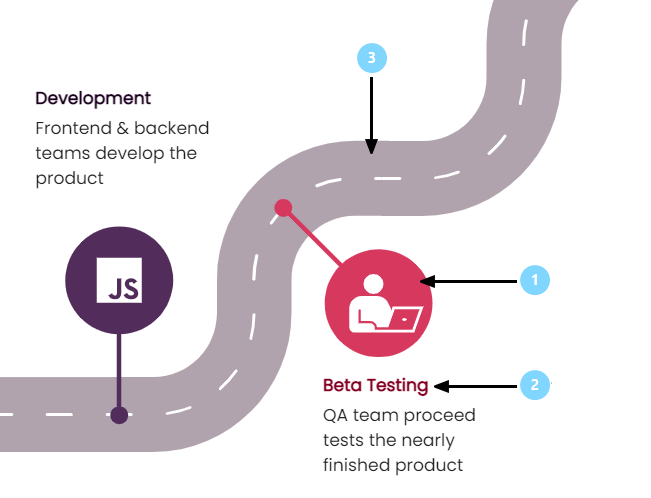

1 Fill color (#D7385E)

2 Variation of fill color (#840022)

3 Static color (#B0A3AE)


Creating a Color Palette

1Go to the Graficto editor.

2 Select Side Toolbar →  Colors to open the Colors Panel.

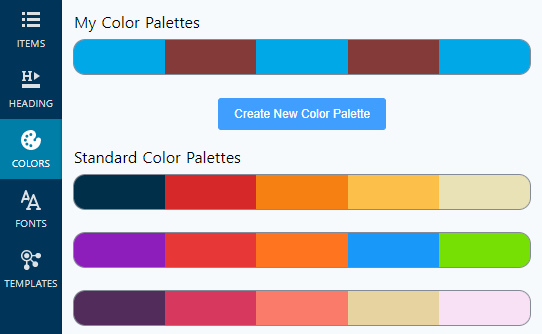

3 Click on Create new Color Palette button under the My Color Palettes section.

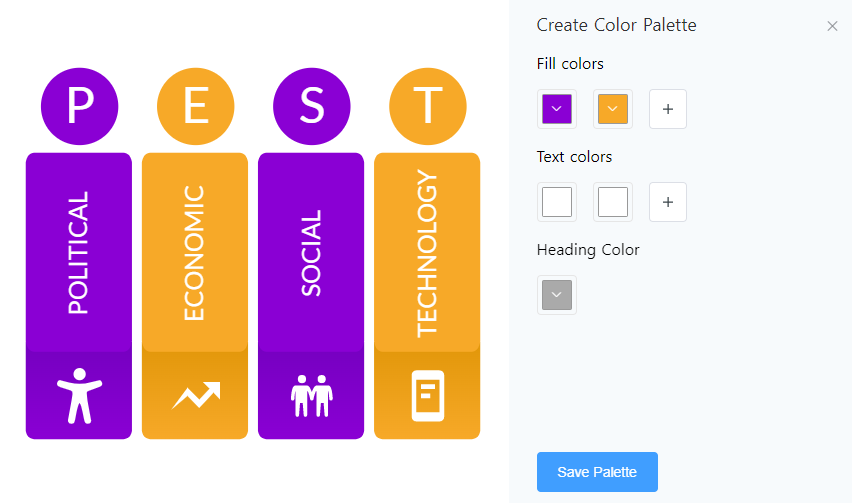

You will get a popup window that enables you to create a custom color palette.

From this window you can select Fill, Text and Static colors as you prefer.

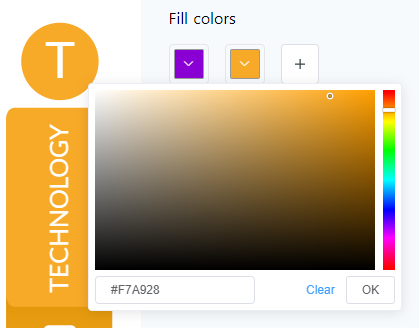

4 Click on + button Fill Colors or Text Colors to add a new color. Then select the color from the color picker. Fill and Text colors each can have up to 5 different color slots. They will be applied to items alternatively.


5 Click on any of the color slots to change the current color. Check the infographic preview on the left side as you change the colors, so you know exactly how your color palette will look like.

6 Finally, click on the Save button to save your custom color palette.


Editing or Deleting a Color Palette

You have the option to edit or delete an existing custom color palette created by you. When you hover the mouse over a custom color palette under My Color Palettes, two buttons will appear.


1 Click on the pencil icon to edit the color palette.

2 Click on the bin icon to delete the color palette. If the selected color palette is the currently active one, delete option will not be available.
